Microsoft Defender Throttled Full Scan Experiment
Introduction
In this article, we will test different flags for the command Set-MpPreference to see the behavior of CPU throttling when performing a Full Scan. I took inspiration from my team at Intelligent Technical Solutions for the commands and wanted to see how those behave using different configurations.
You may be asking, why do we need to throttle our full scans? We may be in a situation where a user is actively using the computer and we need to perform a full scan in the background. It is important for us to throttle the Full Scan to avoid taking up most of the CPU utilization and slow down the computer’s performance for the user’s tasks.
A quick breakdown of the flags that we will use for the Set-MpPreference command:
-DisableCpuThrottleOnIdleScans
As per Microsoft, this flag indicates whether the CPU will be throttled for scheduled scans while the device is idle. This parameter is enabled by default, thus ensuring that the CPU won’t be throttled for scheduled scans performed when the device is idle, regardless of what ScanAvgCPULoadFactor is set to. For all other scheduled scans, this flag does not have any impact and normal throttling will occur. The default value is True.
-ScanAvgCPULoadFactor
As per Microsoft, this flag specifies the maximum percentage CPU usage for a scan. The acceptable values for this parameter are: integers from 5 through 100, and the value 0, which disables CPU throttling. Windows Defender does not exceed the percentage of CPU usage that you specify. The default value is 50.
This is not a hard limit but rather a guidance for the scanning engine to not exceed this maximum on average. If ScanOnlyIfIdleEnabled (instructing the product to scan only when the computer is not in use) and DisableCpuThrottleOnIdleScans (instructing the product to disable CPU throttling on idle scans) are both enabled, then the value of ScanAvgCPULoadFactor is ignored.
-ScanOnlyIfIdleEnabled
As per Microsoft, this flag Indicates whether to start scheduled scans only when the computer is not in use. If you specify a value of $True or do not specify a value, Windows Defender runs schedules scans when the computer is on, but not in use. The Default value is None.
-ThrottleForScheduledScanOnly
As per Microsoft, A CPU usage limit can be applied to scheduled scans only, or to scheduled and custom scans. The default value applies a CPU usage limit to scheduled scans only. The acceptable values for this parameter are:
- 1 (Default) - If you enable this setting, CPU throttling will apply only to scheduled scans.
- 0 - If you disable this setting, CPU throttling will apply to scheduled and custom scans.
Now that the flags have been discussed, we can now proceed with the experiment.
Full Scan Configurations

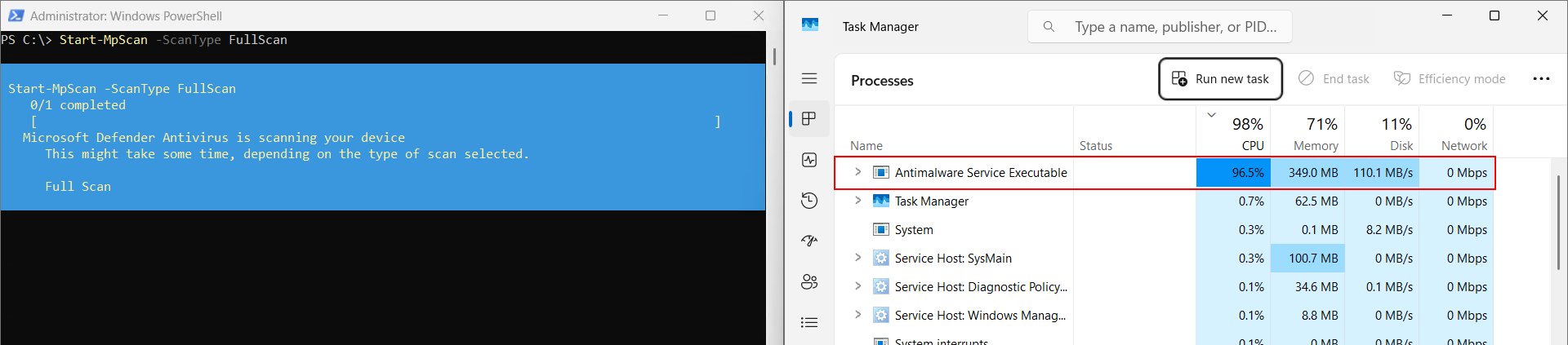

Normal Full Scan
1
Start-MpScan -ScanType FullScan
This will be our control. In this configuration, we are using all the Default values and running a on-demand Full Scan. As you can see in the image below, the CPU Utilization of the Antimalware Service Executable which is the Microsoft Defender is around ~96% CPU Utilization and our overall utilization is at 98%.
Configuration 1
1
2
Set-MpPreference -ScanAvgCPULoadFactor 40
Start-MpScan -ScanType FullScan
In this configuration, we have set the -ScanAvgCPULoadFactor to 40 to limit the CPU Utilization of the scan to 40%. We noticed that the CPU Utilization for the process is still around 95%.

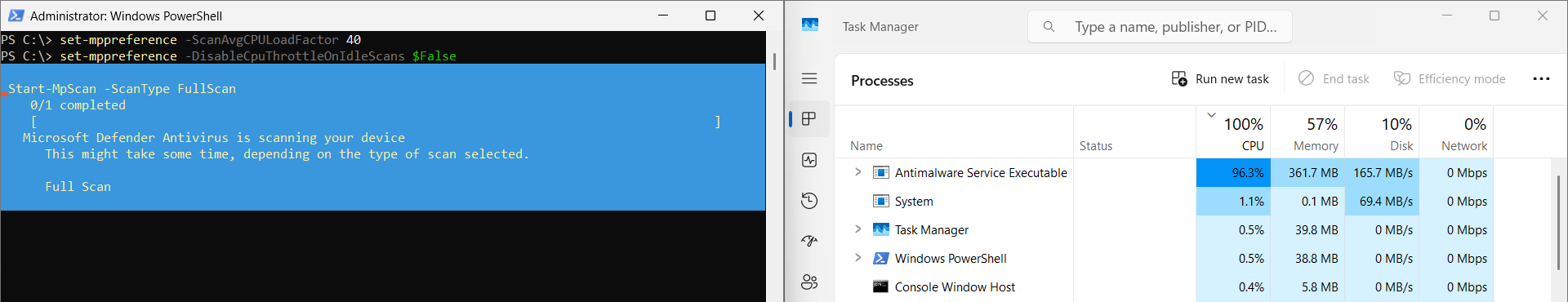

Configuration 2
1
2
3
Set-MpPreference -ScanAvgCPULoadFactor 40
Set-MpPreference -DisableCpuThrottleOnIdleScans $False
Start-MpScan -ScanType FullScan
In this configuration, we have set the -DisableCpuThrottleOnIdleScans to False to allow us to throttle the process for scheduled scans when the device is idle. As you can see, the CPU utilization for the Defender process is around 96%.

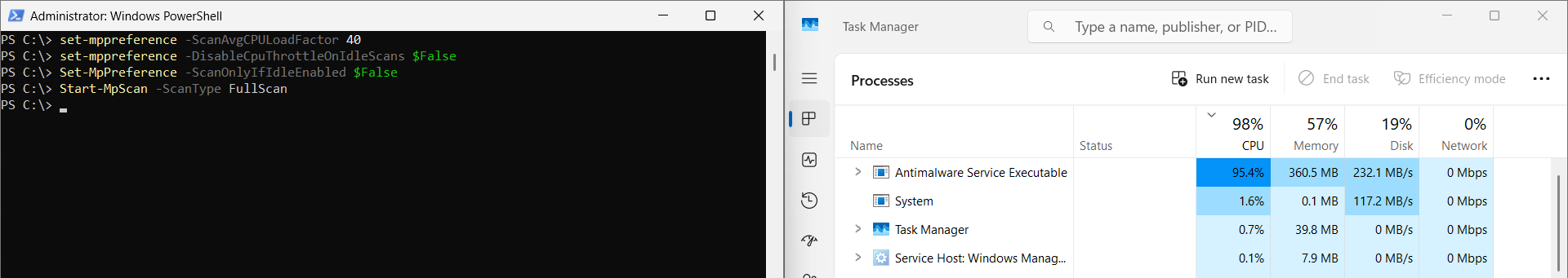

Configuration 3
1
2
3
4
Set-MpPreference -ScanAvgCPULoadFactor 40
Set-MpPreference -DisableCpuThrottleOnIdleScans $False
Set-MpPreference -ScanOnlyIfIdleEnabled $False
Start-MpScan -ScanType FullScan
In this configuration, we have set both the -DisableCpuThrottleOnIdleScans and -ScanOnlyIfIdleEnabled to False to allow us to throttle the process for scheduled scans when the device is idle or when the computer is on, but not in use. As you can see, the CPU utilization for the Defender process is still around 95%.
Configuration 4
1
2
3
4
5
Set-MpPreference -ScanAvgCPULoadFactor 40
Set-MpPreference -DisableCpuThrottleOnIdleScans $False
Set-MpPreference -ScanOnlyIfIdleEnabled $False
Set-MpPreference -ThrottleForScheduledScanOnly $False
Start-MpScan -ScanType FullScan
In this configuration, we have set the flags -DisableCpuThrottleOnIdleScans, -ScanOnlyIfIdleEnabled, and -ThrottleForScheduledScanOnly to False to allow us to throttle the process for scheduled scans when the device is idle and when we are running a custom scan. As you can see, the CPU utilization for the Defender process is around 31% which is below the 40% threshold we set for the ScanAvgCPULoadFactor. This means that we have successfully throttled the Full Scan process.

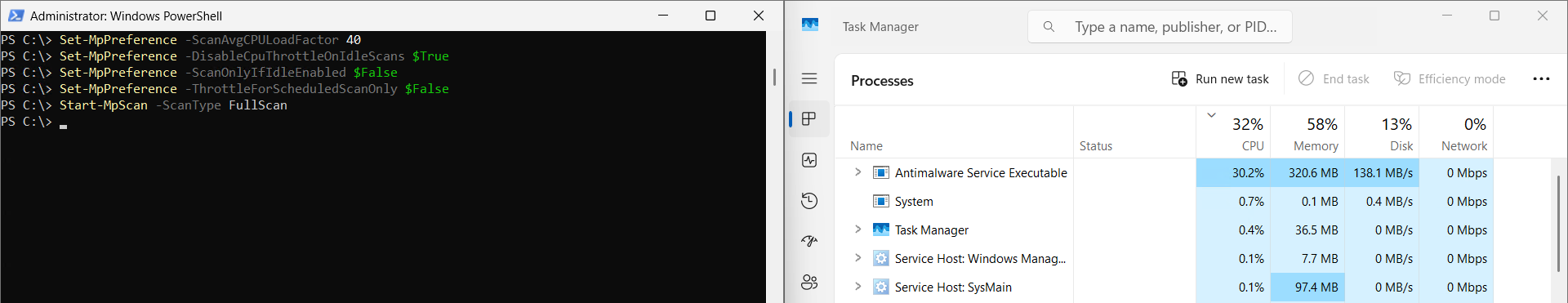

Configuration 5
1
2
3
4
5
Set-MpPreference -ScanAvgCPULoadFactor 40
Set-MpPreference -DisableCpuThrottleOnIdleScans $True
Set-MpPreference -ScanOnlyIfIdleEnabled $False
Set-MpPreference -ThrottleForScheduledScanOnly $False
Start-MpScan -ScanType FullScan
In this configuration, we have set the flag -DisableCpuThrottleOnIdleScans to True while -ScanOnlyIfIdleEnabled and -ThrottleForScheduledScanOnly are set to False. As you can see, the CPU utilization for the Defender process is still around 30%.

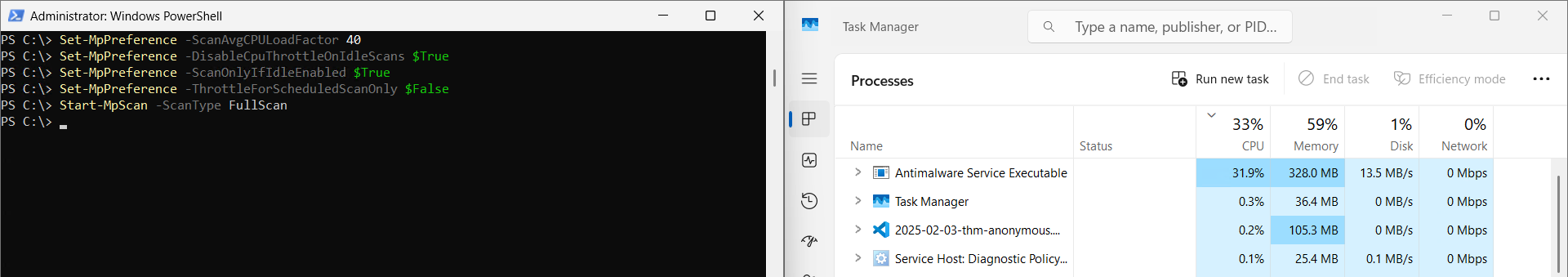

Configuration 6
1
2
3
4
5
Set-MpPreference -ScanAvgCPULoadFactor 40
Set-MpPreference -DisableCpuThrottleOnIdleScans $True
Set-MpPreference -ScanOnlyIfIdleEnabled $True
Set-MpPreference -ThrottleForScheduledScanOnly $False
Start-MpScan -ScanType FullScan
In this configuration, we have set the flags -DisableCpuThrottleOnIdleScans and -ScanOnlyIfIdleEnabled to True or to their Default value and -ThrottleForScheduledScanOnly is still set to False. As you can see, the CPU utilization for the Defender process is still around 31%.
This means that the flag ThrottleForScheduledScanOnly is the one that actually allows us to throttle the Full Scan since we are running an On-demand scan and not a scheduled scan. Though based on the documentation, it does not say that it will throttle the on-demand scan as well, the on-demand scan might be under custom scans in this scenario.
Conclusion
In conclusion, the flag ThrottleForScheduledScanOnly along with ScanAvgCPULoadFactor allowed us to throttle the Defender Full Scan as we are running an on-demand scan and not a scheduled scan. You may also set the rest of the flags shown above if you wanted to set throttling for scheduled scans. Kudos to my team at ITS in creating the script which inspired me to create this simple experiment.
Disclaimer: Please do not take the information in this article as a fact as the results of this experiment are purely based on my observations and research. Please do research on your own and feel free to perform this experiment in your environment.
References
- Set-MpPreference: https://learn.microsoft.com/en-us/powershell/module/defender/set-mppreference?view=windowsserver2025-ps
- Start-MpScan: https://learn.microsoft.com/en-us/powershell/module/defender/start-mpscan?view=windowsserver2025-ps
- DisableCpuThrottleOnIdleScans: https://learn.microsoft.com/en-us/powershell/module/defender/set-mppreference?view=windowsserver2025-ps#-disablecputhrottleonidlescans
- ScanAvgCPULoadFactor: https://learn.microsoft.com/en-us/powershell/module/defender/set-mppreference?view=windowsserver2025-ps#-scanavgcpuloadfactor
- ScanOnlyIfIdleEnabled: https://learn.microsoft.com/en-us/powershell/module/defender/set-mppreference?view=windowsserver2025-ps#-scanonlyifidleenabled
- ThrottleForScheduledScanOnly: https://learn.microsoft.com/en-us/powershell/module/defender/set-mppreference?view=windowsserver2025-ps#-throttleforscheduledscanonly
- Defender On-Demand Scan: https://learn.microsoft.com/en-us/defender-endpoint/run-scan-microsoft-defender-antivirus
